Question 1

What is SPL and how does it affect subwoofer selection?

Accepted Answer

SPL is the measure of how loud your system gets in dB inside the vehicle; for competition, choose subs that can move a lot of air and handle extreme power in the 30–60 Hz range. In practice, that means high Xmax, strong motors, and rugged suspensions. Pair those subs with an enclosure tuned to your vehicle’s cabin peak and an electrical system that holds voltage under load, or the best driver on paper will still underperform.

Question 2

How do SPL subwoofers differ from sound quality subwoofers?

Accepted Answer

SPL subs prioritise maximum output and power handling, while SQ subs focus on accurate, low-distortion response across a wider band. SPL drivers often have stiffer suspensions, heavier cones, larger coils, and cooling features to survive short, high-power burps. SQ drivers aim for linearity and low distortion, which can trade away some raw sensitivity and burst output compared to SPL units.

Question 3

Can SPL competition systems be used for daily music listening?

Accepted Answer

They can, but SPL-first builds are optimised for short, loud bursts and often sacrifice sound quality and bandwidth compared to SQ systems. If you want dual-purpose use, consider a slightly wider passband (e.g., a vented box with a moderate tuning) and thermal management for longer sessions, accepting a small trade-off in peak score.

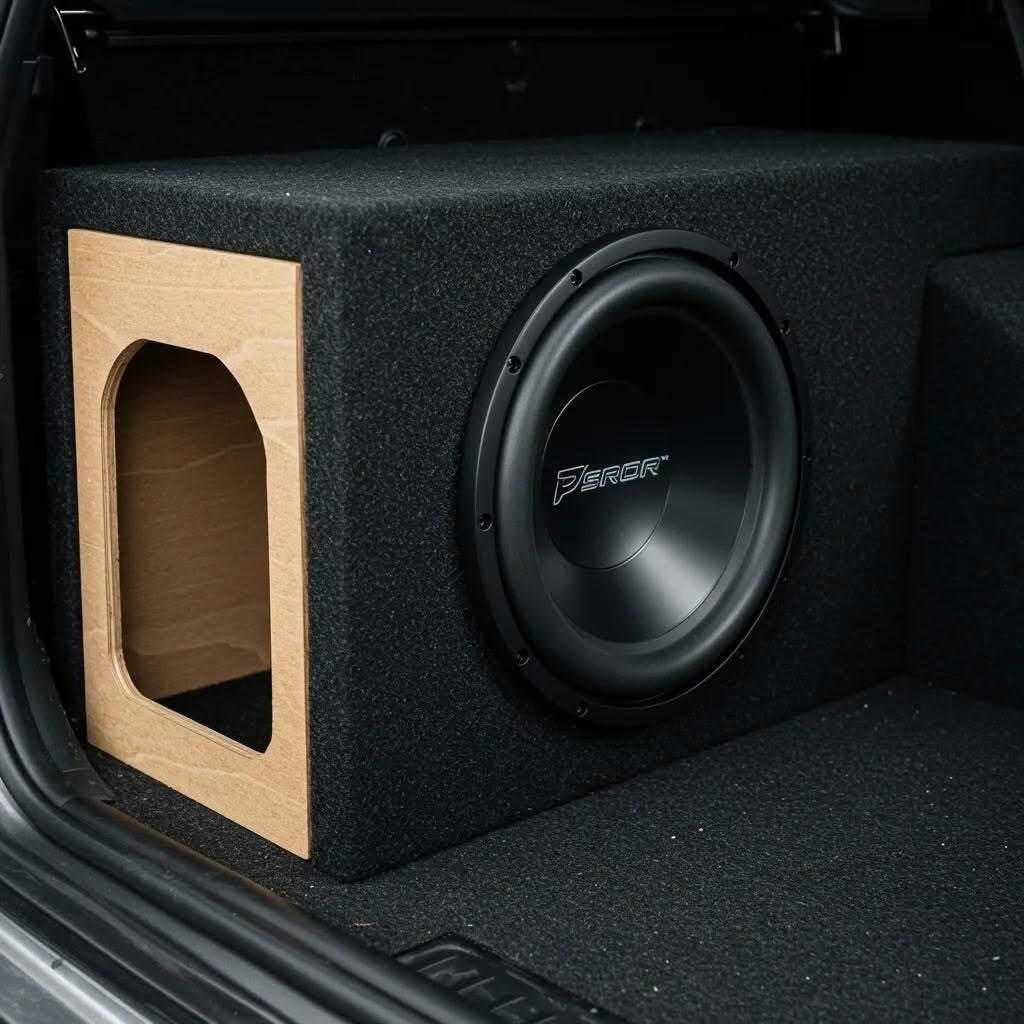

Question 4

What enclosure types work best for SPL competitions?

Accepted Answer

Large ported or bandpass enclosures tuned to the target peak (often 35–45 Hz) typically produce more output than sealed boxes for SPL runs. Fourth-order bandpass designs can deliver very high efficiency over a narrow band—ideal for dedicated burps—while sixth-orders allow more bandwidth control but are more complex to design and build.

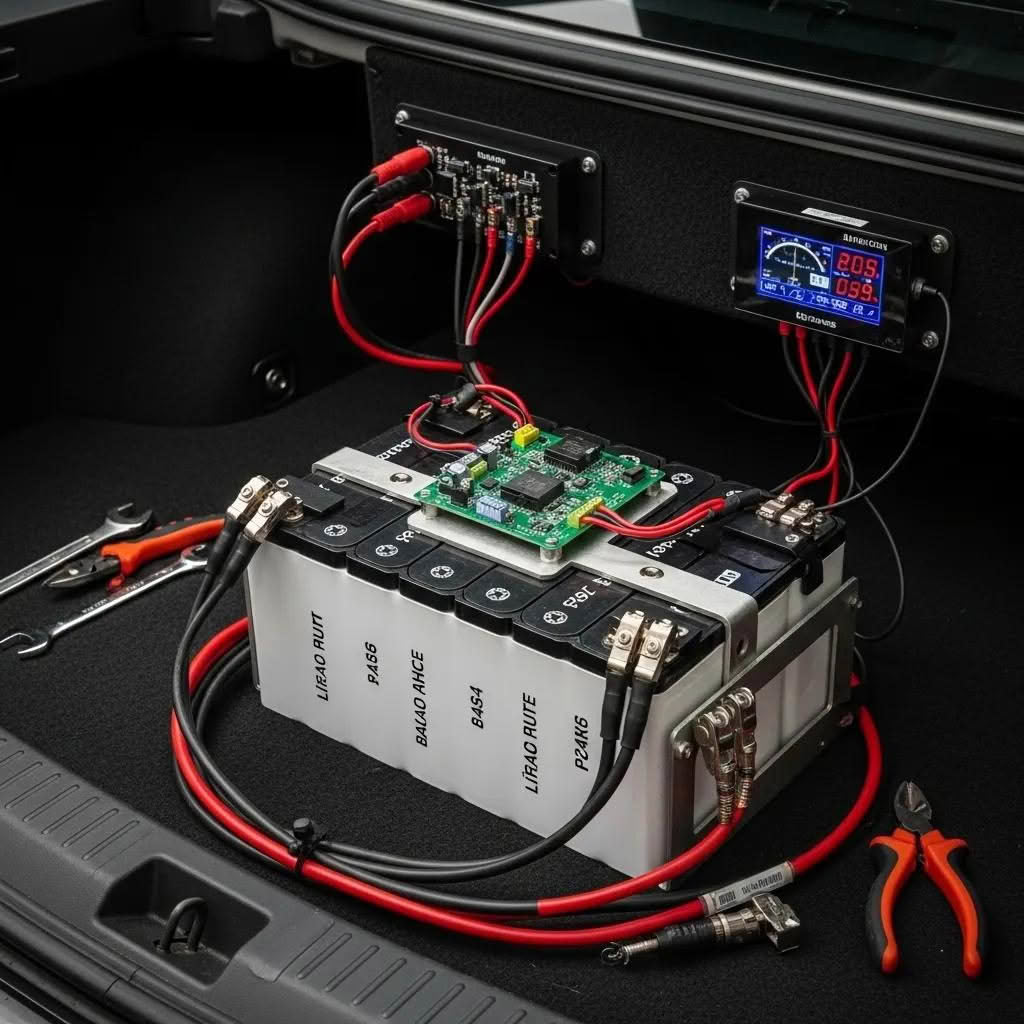

Question 5

How important is upgrading the electrical system for SPL setups?

Accepted Answer

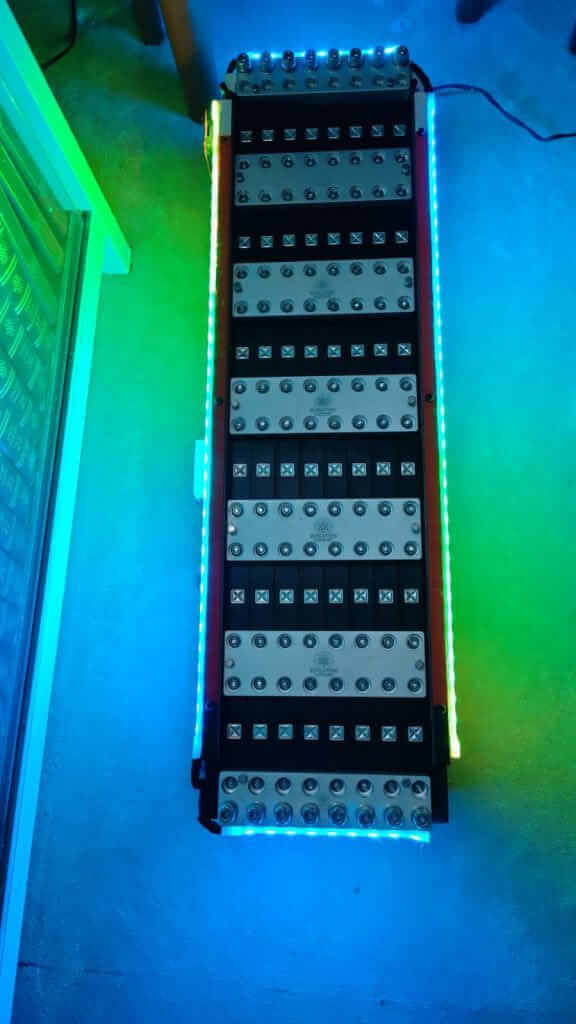

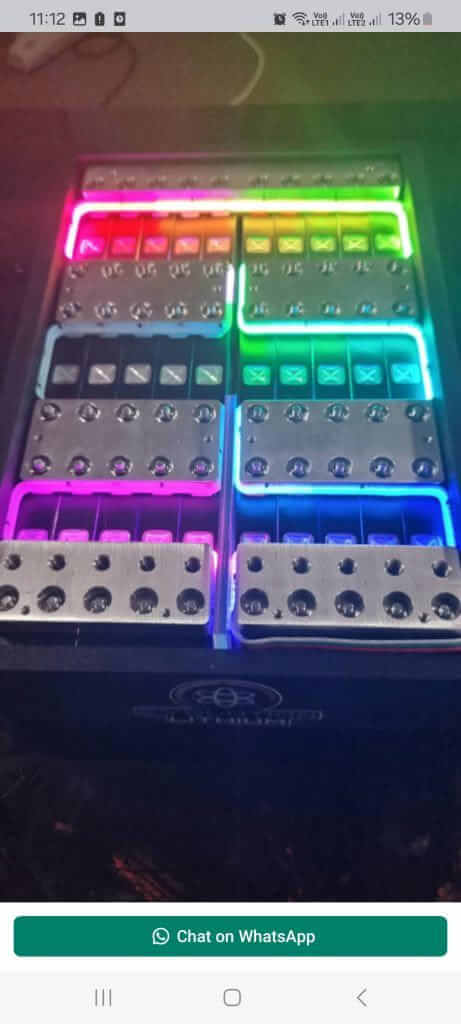

It’s critical—high-output alternators, oversized wiring, and a robust lithium battery bank ensure voltage stability and prevent power loss during competition. LTO SCiB banks, in particular, excel at high burst currents and recharge speed between runs, making them a strong choice for NZ competitors who want consistent numbers.

Question 6

How many batteries do I need for a given amplifier power?

Accepted Answer

It depends on your amplifier efficiency, target voltage hold, and burp duration. As a rough approach, size your LTO bank to support your average current draw during the burp (amps = watts/volts/efficiency), then add headroom for voltage stability. Many competitive builds size for several hundred amps of instantaneous current with enough capacity to keep sag minimal across repeated attempts—test with clamp meters and adjust.

Question 7

Is 12 V or 16 V better for SPL competitions?

Accepted Answer

Rules and equipment dictate your choice. Some classes cap voltage at “12 V” systems; others allow higher voltages. Higher voltage can improve amplifier power and reduce current for the same wattage, but it requires compatible amps and charging. If your class permits, compare the gains vs. the cost/complexity. Many NZ builds deliver excellent results with strong “12 V-class” LTO SCiB banks that hold voltage very flat.

Question 8

What’s the safest way to set gains for an SPL build?

Accepted Answer

Use a methodical process: disable EQ/bass boost, play test tones near your target frequency, and increase gain until just before clipping using a scope or reliable distortion indicator. Then confirm under load with clamp/voltage measurements, checking thermal behaviour. Document the final settings and don’t rely solely on head-unit volume numbers; validate on the meter.
