How to Size a Lithium Bank for Your Car Audio System

If you want loud, clean bass without headlights dimming, you must size your lithium bank correctly. The key factors are simple: lithium bank car audio, lto banks, battery banks, power delivery, voltage stability. In practice, you’ll total your amplifier power, convert that to current at your chosen system voltage, and ensure your LTO (Lithium Titanate Oxide) SCiB (Super Charge Ion Battery) bank’s ampere-hours and C‑rate can supply the burst current while your alternator covers the average draw. For music on daily drivers, plan for roughly 30–50 percent of rated amplifier watts as average current, and for Sound Pressure Level (SPL) burps, plan near peak. This guide walks you step by step so you can pick a bank that stays stable under load and charges quickly on the road.

Right away, here’s the fast answer many installers use: Estimate peak current I = Pout / (Vbus × η). Example: a 5,000 W Class D monoblock at 14.4 V and 0.80 efficiency draws about 5,000 / (14.4 × 0.80) ≈ 434 A at full tilt. Choose an LTO (Lithium Titanate Oxide) pack whose C‑rate and capacity give comfortable headroom for that burst current, then confirm your alternator’s hot output can cover 30–50 percent of the amplifier’s rated power as average current. A 20 Ah SCiB bank (rated for high burst current in its platform specification — see product pages for exact C‑rates) can deliver very high burst current, but pairing with a 240–300 A alternator upgrade for car audio ensures quick recovery and charging between hits.

Prerequisites and Tools

Before sizing or buying anything, gather accurate information and the right measurement tools. Good data makes smart decisions and avoids expensive rewiring later.

• Amplifier details: rated watts, typical clamp watts, class, and efficiency estimates (Class D sub amps typically 75–85 percent on music).
• Target system voltage: varies by cell platform — check each SKU’s recommended operating window on the product pages. Examples: the 10 Ah platform is commonly recommended around 15.0–16.2 V, while the 20 Ah platform is typically recommended around 14.2–15.6 V. As a practical rule, daily drivers often target ~14.4–15.3 V and SPL builds may charge to 16.2 V where the chosen SKU and vehicle electronics allow.
• Alternator data: cold and hot output, idle and cruise amps; consider an alternator upgrade for car audio if current is marginal.
• Measurement tools: Digital Multimeter (DMM), DC (Direct Current) clamp meter, and if available, a handheld oscilloscope for voltage sag and ripple checks.
• Wiring and protection: 1/0 AWG (American Wire Gauge) or larger OFC (Oxygen Free Copper) cable, copper busbars, ANL or CNL (Ceramic Nano-Laminate) fuses (high-current fuse styles), distribution blocks, crimp lugs, and heat-shrink.
• Charging and balance gear: suitable charger or adjustable power supply, and a quality 6S active balancer for LTO packs.

How the System Works

Your electrical system is a team: the alternator supplies continuous current, the battery bank handles transients, and wiring determines how much of that power actually reaches the amplifiers. Alternators are strongest at cruise RPM and weaker at hot idle, so the battery bank fills the gaps during bass notes. With LTO (Lithium Titanate Oxide) SCiB (Super Charge Ion Battery), you get a very flat discharge curve and low internal resistance, which means exceptional voltage stability during hard hits compared with traditional AGM (Absorbent Glass Mat).

Most Class D amplifiers respond dramatically to supply voltage. A drop of 1.0 V from 14.4 V can cost 7–15 percent of clamp power depending on regulation, so keeping bus voltage high and stable is worth real decibels. LTO banks also accept charge rapidly, so they recover quickly between songs or SPL runs. Finally, your wiring and protection scheme must be sized for burst current without excessive voltage drop, because a great battery on undersized cable still sags at the amplifier terminals.

Why Voltage Stability Matters for High-Power Car Audio

For subwoofer systems, dynamic current spikes are intense and brief. Traditional lead-acid and AGM batteries exhibit higher internal resistance and slower charge acceptance, which translates into voltage sag under load and sluggish recovery. In contrast, LTO SCiB packs maintain voltage during bursts and accept charge very quickly, enabling clean transients and consistent clamp numbers at the line.

On music with real dynamics, your average current may be a fraction of the peak, but the strongest peaks shape how loud and clean your system feels. Bench tests and competition logs consistently show that solid voltage stability reduces amplifier clipping, lowers distortion, and improves woofer control. When you feel the bass stay “tight” at the end of a long demo, that is your battery bank preserving bus voltage while the alternator catches up. This is exactly where LTO banks shine.

Key Concepts: lithium bank car audio, lto banks, battery banks, power delivery, voltage stability

Keep these concepts in mind as you work through sizing and installation. They are the practical levers that deliver results at the meter and to your ears.

• Voltage stability: keeping the DC (Direct Current) bus near target voltage during transients.
• Power delivery: ensuring both continuous and burst current paths are low resistance and adequately protected.
• Chemistry choice: LTO (Lithium Titanate Oxide) SCiB for fast charge, low sag, and cycle life; AGM (Absorbent Glass Mat) when budgets are limited but with more sag.
• System synergy: alternator supplies average current; the battery bank covers bursts; wiring determines how much voltage arrives at the amplifier under load.

Step 1: Define Your Amplifier Load and Real Current Needs

Start by totaling your amplifiers’ realistic power output. For sub-stage Class D amps, use clamp data if you have it; otherwise, estimate 70–85 percent of rated power on music. For mids/highs Class D or Class AB, use conservative efficiency numbers. Convert watts to current using I = Pout / (Vbus × η). Decide whether you are building a daily system, demo build, or SPL burp car because the duty cycle and average current differ markedly between those use cases.

Example: Two 3,000 W monoblocks plus a 1,000 W four-channel may clamp near 6,500 W on music. At 14.4 V and 80 percent efficiency, peak current is roughly 6,500 / (14.4 × 0.80) ≈ 564 A. On typical music, average may be 30–50 percent of that depending on compression and gain structure. Write these numbers down, because they drive everything else from alternator choice to battery capacity and cable gauge.

Step 2: Audit Your Alternator and Charging Strategy

Alternators are rated cold; hot output at idle can be 40–60 percent of the headline number. Measure with a DC clamp meter and watch voltage at the battery during a known test track. If you have a smart alternator, it may reduce output at cruise to save fuel, which is great for emissions and bad for SPL. In those cases, a regulator or DC-DC charger strategy may be required to keep a 6S LTO bank in its optimal range.

As a rule of thumb, size alternator output to cover your average music current with 20–30 percent headroom. If your average current is 220 A, a 270–320 A alternator upgrade for car audio gives you elbow room and fast recovery. Pair this with wiring that has enough copper to keep voltage drop well under 0.5 V round trip during those averages.

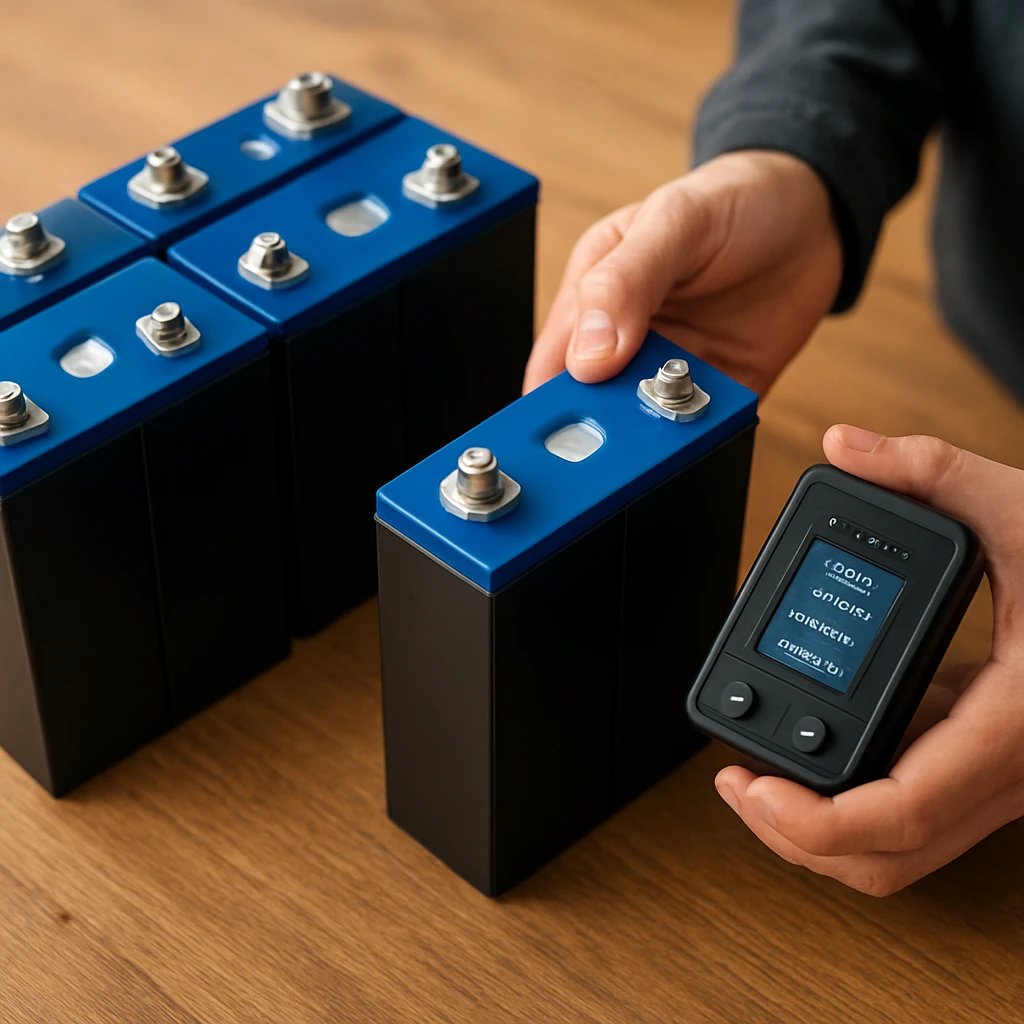

Step 3: Choose Your Voltage Window and Pack Topology

Most daily drivers target a 6S LTO pack charged between roughly 14.8 and 15.3 V, which is friendly to many head units and vehicle electronics. SPL builds often charge to 16.2 V for maximum headroom using equipment rated for 16 V operation. Verify every device in the chain: amplifiers, processors, fans, and any lighting must handle the chosen voltage. Do not mix sensitive OEM accessories on an elevated 16 V rail without proper conversion.

Pack topology is typically 6S x nP, where S is series for voltage and P is parallels for capacity. For example, 6S3P with 10 Ah cells yields approximately 30 Ah capacity at the pack level, with burst current capability scaling with the number of parallels and the cells’ C‑rate. Decide how much of your required burst current comes from the pack versus the alternator, then select parallels accordingly.

Step 4: Match LTO Banks to Amplifier Power and Voltage Stability

With your peak and average current estimates, choose capacity and C‑rate that maintain voltage during bursts while charging rapidly between hits. LTO SCiB cells such as 3 Ah (75C burst), 10 Ah (75C burst), and 20 Ah (30C burst) from Evolution Lithium offer different trade-offs between size and burst current — specs and recommended operating windows vary by SKU, so always check the product pages for the exact C‑rates and voltage guidance. A higher C‑rate delivers more instantaneous current per ampere-hour, while more parallels increase both capacity and burst headroom.

Practical installer rule: aim for pack burst current capability at or above your calculated peak current, with 20–40 percent headroom for thermal and wiring losses. For music-heavy daily use, many vehicles in the 3–6 kW range are well-served by 20–40 Ah of LTO, provided the alternator is 240 A or higher. SPL burp cars pushing 8–15 kW often step to 40–60 Ah or more, or they run multiple banks near the amplifiers with copper busbars to minimize voltage drop.

Step 5: Engineer Wiring, Busbars, and Fuse Protection

Voltage stability does not happen without low-resistance copper. Use short runs of 1/0 AWG OFC from the bank to distribution blocks or busbars, and mirror that gauge on grounds. Star-ground the audio system to a single chassis point or run dedicated return cables to the bank if the chassis is unreliable. Every positive lead leaving a battery bank must be fused within 200 mm of the terminal.

When in doubt, oversize cable to keep round-trip voltage drop under 3 percent at your average current. A tidy layout with compression-lug terminations, stainless hardware, and anti-oxidation compound reduces maintenance and heat. Keep your active balancer leads tidy and protected, and route signal cables away from high-current paths to avoid induced noise. Good electrical design practices are as audible as a woofer upgrade.

Step 6: Verify With Measurements and Fine-Tune

After installation, measure voltage at the amplifier input blocks during a bass note sweep, and clamp the positive lead to estimate average and peak current. If voltage sags beyond your target, add capacity or reduce resistance by shortening runs or adding parallels. Check charging recovery time between hits; long recovery suggests alternator limits or regulator behavior, not just battery capacity.

Balance your 6S LTO pack routinely with a reputable active balancer and keep the pack within the manufacturer’s voltage window. For daily drivers, many installers aim to float around 14.8–15.0 V and top-balance occasionally. For SPL cars, pre-charge to target, burp, and immediately recharge. Healthy cells, correct balancing, and attentive charging keep SCiB banks delivering consistent results for thousands of cycles.

Practical Installation Considerations

Placement matters. Mount the primary LTO bank close to the amplifiers to minimize cable length and drop; a front support battery near the alternator helps stabilize the front bus. Use rigid copper busbars or a quality distribution block, and torque hardware to spec. Keep ventilation in mind even though LTO runs cool compared with AGM; hot, sealed spaces degrade any battery’s performance over time.

• Terminations: use proper crimp dies and verify pull strength; avoid set-screw-only lugs on high-current runs.
• Serviceability: leave room to access fuses, balancer leads, and bolts for re-torquing after heat cycles.
• Noise control: route signal cables on the opposite side of the vehicle from high-current power cables where possible.
• Testing: log a few minutes of voltage and current during a demo session; adjust gain and crossover to reduce needless clipping and wasted heat.

Safety and Electrical Design Practices

Design for the worst case. Fuse every positive cable at the source, including each battery bank and alternator charge lead. Use abrasion-resistant loom, grommets at pass-throughs, and proper strain relief to prevent shorts. A properly rated master disconnect can be helpful in competition vehicles. Confirm that your chargers, balancers, and any DC-DC converters are rated for a 6S LTO window.

• Ground integrity: clean to bare metal, use star washers, and apply dielectric protection after torqueing.
• Heat management: avoid mounting batteries directly above amplifiers or exhaust pathways; heat is the enemy of every chemistry.
• Documentation: label fuses and wiring paths so a future you or an inspector understands the build at a glance.
• Compliance: respect manufacturer voltage limits; do not exceed 16.2 V on a 6S SCiB pack unless the cells and equipment are explicitly rated.

Common Mistakes That Undercut Performance

• Undersizing the alternator: relying on the battery for average current makes recovery slow and voltage droop persistent.
• Ignoring wiring losses: long, thin cable can waste more voltage than a bigger bank can fix.
• Overfusing or underfusing: wrong fuse sizes either nuisance-blow or fail to protect during a short.
• Skipping balancing: even robust LTO cells drift over time without a good 6S active balancer.
• Charging mismatch: stock regulators or smart alternators that float too low leave capacity untapped.
• Mixing chemistries poorly: combining AGM with LTO on the same bus can cause uneven current sharing and charging behavior.

Chemistry Comparison for Car Audio Battery Choices

Choosing the right chemistry impacts weight, recovery, and long-term reliability. Here’s a high-level comparison used by many installers in New Zealand and Australia.

Real-World Examples Using Evolution Lithium SCiB Banks

Daily driver 5–6 kW: A ute running a 5 kW monoblock and 1 kW mids/highs with a 270 A alternator at 14.8–15.0 V performs strongly with a 20–30 Ah LTO pack from Evolution Lithium. The 10 Ah (75C burst) cells in a 6S3P topology give excellent burst current and quick recharge on the commute. Headlights stay steady, and clamp numbers hold late into demo sessions.

SPL 10–12 kW: A sedan on a 400 A alternator, charging to 16.2 V, uses 40–60 Ah LTO located in the rear with short 1/0 AWG runs to dual monoblocks. Evolution Lithium’s 20 Ah cells (30C burst on the 20 Ah platform) offer sustained high-current delivery with less bulk than stacks of AGM. The team logs a stable voltage trace over multiple burps with rapid recovery when the external charger tops off between rounds.

How Evolution Lithium Helps You Get It Right

Evolution Lithium is a New Zealand supplier specializing in custom-built LTO SCiB battery banks for car audio. Options include 3 Ah (75C burst), 10 Ah (75C burst), and 20 Ah (30C burst) genuine Toshiba cells, hand-assembled with attention to busbar layout and practical install constraints. The result is high burst-discharge capability for powerful amplifiers and SPL builds, rapid charging, long cycle life, and exceptional voltage stability compared with lead-acid or AGM.

Because units are built to suit, you can match capacity and discharge rating to your alternator, wiring, and amplifier plan. Evolution Lithium also offers amplifiers and accessories, responsive support, and safety information referencing Toshiba’s SCiB testing. For New Zealand customers, the online shop makes it straightforward to spec and order a bank that supports real-world installs, not just datasheet numbers.

Suggested Visuals to Add Later

• Top-down diagram of a 6S LTO bank with copper busbars, balancer leads, and fusing points.
• Amplifier rack photo showing short 1/0 AWG runs from the bank to distribution blocks.
• Alternator charging trace before and after upgrade, illustrating improved voltage stability.
• Wiring layout schematic with star-ground and fuse placement callouts.

Installer Tips and Best Practices

• Plan the electrical first: anchor points, cable lengths, fuse blocks, and service access. Audio gear placement comes next.
• Chase milliohms: clean grounds, tight hardware, and short runs gain you more than fancy terminals alone.
• Validate gains with measurements: a DC clamp and a DMM tell you if changes helped.
• Keep a maintenance routine: re-torque after a few heat cycles, inspect for rub-through, and re-check balancer operation.

Closing Thoughts

Size the bank to your current needs, engineer the wiring, and your system will hit harder, cleaner, and longer. In the next 12 months, more builders will shift to LTO for its recoverability and consistent clamp results across weather and duty cycles. What will your meters and ears say after you design for lithium bank car audio, lto banks, battery banks, power delivery, voltage stability?
