How to Calculate Car Amplifier Current Draw: RMS Watts to Amps Guide

To calculate car amplifier current draw, divide the amplifier’s RMS output power by its operating voltage multiplied by its efficiency. For example, a 5,000W RMS Class D amplifier operating at 15.8V with 80% efficiency requires approximately 396 amps of DC input current when producing its full rated output.

The formula is:

Current draw (A) = RMS watts ÷ (Voltage × Efficiency)

However, that calculation does not mean the amplifier continuously draws 396A while playing music. Actual current demand varies with volume, music content, speaker impedance, amplifier efficiency and voltage under load.

For New Zealand and Australian car audio systems, calculating current draw correctly is essential when selecting alternators, power cables, fuses and lithium battery banks. High-power Toshiba SCiB LTO systems introduce another consideration: their intended operating voltage can be higher than that of conventional 12V vehicle charging systems.

This guide explains the calculations, compares amplifier classes, covers multiple-amplifier systems and shows how to use those figures when designing a reliable car audio electrical system.

Understanding Watts, Volts and Amps in Car Audio

Three electrical measurements determine how much power a system consumes:

• Watts (W): Electrical power.
• Volts (V): Electrical potential difference.
• Amps (A): Electrical current.

The fundamental relationship is:

Power (W) = Voltage (V) × Current (A)

Rearranging the equation gives:

Current (A) = Power (W) ÷ Voltage (V)

For example, a 1,440W electrical load operating at 14.4V draws 100A.

However, an amplifier’s advertised RMS output is the power delivered to its speaker load, not the electrical power drawn from the vehicle.

Amplifiers are not 100% efficient. Some input energy is converted into heat, so the electrical input requirement is greater than the audio output.

That is why amplifier efficiency must be included in the calculation.

The Correct Formula for Car Amplifier Current Draw

For a preliminary current-demand estimate, use:

Amplifier input current (A) = RMS output (W) ÷ [Supply voltage (V) × Amplifier efficiency]

Convert efficiency percentages into decimals before calculating:

• 80% efficiency = 0.80.
• 75% efficiency = 0.75.
• 60% efficiency = 0.60.

Consider a 2,000W RMS Class D amplifier operating at 14.4V with an assumed 80% efficiency.

2,000 ÷ (14.4 × 0.80) = 173.6A

The amplifier requires approximately 174A of electrical input to produce 2,000W under those assumptions.

This is a full-output planning estimate, not a measurement of average music demand.

For faster system calculations, use the Evolution Lithium car audio lithium battery and amplifier current calculator, which factors in RMS power, system voltage and alternator contribution.

Car Amplifier Current Draw Chart: 14.4V vs 15.8V

Charging voltage has a direct effect on the current theoretically required to produce a given amount of amplifier output power.

The following estimates assume 80% amplifier efficiency.

These figures represent the estimated electrical input needed when the amplifier produces its specified RMS output continuously.

They are not battery-bank recommendations, cable ampacity ratings or predictions of average current during music.

The calculations also assume the amplifier maintains the same output and efficiency at both voltages. Real amplifiers may behave differently when supply voltage changes.

Higher voltage can reduce current demand for the same delivered power, but only when the amplifier and every connected electrical component can safely operate at that voltage.

How Amplifier Efficiency Changes Current Draw

Amplifier class and circuit design affect how much input power becomes useful audio output.

Two amplifiers delivering the same RMS power can draw different amounts of current.

Class D Amplifier Efficiency

Class D amplifiers are commonly used for high-power subwoofer systems because of their relatively high efficiency.

For preliminary calculations, 75–85% can be a useful Class D planning range, depending on the amplifier and operating conditions.

Evolution Lithium generally uses 80% efficiency for comparative high-power Class D calculations when verified manufacturer data is unavailable.

For example, a 3,000W RMS Class D amplifier at 15.8V and 80% efficiency requires approximately 237A at full rated output.

Class A/B Amplifier Efficiency

Class A/B amplifiers are often used for full-range speakers and can have substantially lower efficiency.

A broad planning range of approximately 50–65% may be appropriate for initial calculations, but actual efficiency varies considerably with output level and amplifier design.

For example, a 1,000W RMS Class A/B amplifier operating at 15.8V and 60% efficiency would require:

1,000 ÷ (15.8 × 0.60) = approximately 105A

The difference matters when combining a high-power monoblock with additional amplifiers for mids and highs.

Rockford Fosgate’s official explanation of car amplifier efficiency and electrical energy losses explains why amplifier design affects power consumption and heat generation.

Use verified manufacturer efficiency data whenever available. Generic percentages are planning assumptions, not guaranteed specifications.

Why Amplifier RMS Power and Speaker Impedance Matter

Calculate electrical demand from the amplifier’s credible RMS output at the nominal impedance the speaker system is wired to present.

Do not use MAX, peak or unverified marketing power ratings.

For example, consider an amplifier advertised with the following illustrative ratings:

If the subwoofers are wired to a nominal 2Ω load, use the 1,800W RMS rating for your initial calculation, not the 3,000W rating at 1Ω.

Real speaker impedance changes with frequency, enclosure behaviour and voice-coil temperature. This is particularly important in subwoofer systems where impedance rise can affect actual power delivery.

Final wired impedance establishes the nominal load for selecting the amplifier’s published rating. It does not guarantee that the amplifier delivers that power throughout an entire song.

Running below the amplifier’s rated minimum impedance can cause excessive current, overheating, protection or failure.

For more detail, see the Evolution Lithium monoblock vs 4-channel amplifier guide covering RMS ratings and speaker impedance.

How to Calculate Current Draw With Multiple Amplifiers

A complete car audio system may contain a subwoofer monoblock, a four-channel amplifier and additional amplification for mids or highs.

Each amplifier should be calculated separately when efficiency differs.

Consider this example at 15.8V:

The combined theoretical amplifier demand is approximately 501A while both amplifiers produce their specified rated output simultaneously.

If the vehicle itself also requires 40A, the total electrical demand under that hypothetical full-output condition becomes approximately 541A.

That does not mean the vehicle requires a 541A alternator. Normal music produces a changing electrical load, and the battery bank can support short periods when demand exceeds alternator output.

The charging system must instead be evaluated against actual average demand, short-duration peaks and how much energy the battery must replace between listening sessions.

Why Music Draws Less Current Than a Continuous Test Tone

One of the biggest mistakes in car audio electrical planning is treating amplifier RMS power as continuous current demand during normal music.

Music is dynamic. Bass notes start and stop, frequencies change and amplifier output varies constantly.

A continuous sine-wave test can maintain high output for longer, making it a more demanding electrical condition.

For example, our earlier 5,000W Class D amplifier has an estimated full-output current requirement of 396A at 15.8V.

If its average output during a particular listening session were equivalent to 35% of that full-output condition, a simplified estimate would be:

396A × 0.35 = approximately 139A average

This is an illustration, not a universal music duty cycle. Amplifier efficiency also changes with output level, so actual average current may differ.

Different uses produce different electrical demands:

• Daily music: Variable load with frequent lower-power periods.
• Bass-heavy demonstrations: Potentially higher average demand over longer periods.
• SPL bursts: Very high short-duration demand with different energy requirements.
• Continuous test tones: Sustained high output that may create substantial electrical and thermal stress.

Measure your actual system rather than assigning every vehicle the same percentage.

What Happens to Amplifier Current Draw When Voltage Drops?

For a fixed output power and efficiency, lower supply voltage increases the theoretical input current requirement.

Consider a 2,000W amplifier at 80% efficiency.

At 14.4V:

2,000 ÷ (14.4 × 0.80) = approximately 174A

At 12.5V:

2,000 ÷ (12.5 × 0.80) = 200A

That represents an increase of approximately 26A to deliver the same 2,000W output under the stated assumptions.

However, an actual amplifier may reduce output, change efficiency or enter protection as voltage falls. It cannot necessarily maintain its rated output indefinitely.

Excessive voltage drop can be caused by several problems:

• Insufficient battery current capability.
• Charging-system output below average demand.
• Undersized positive or negative cables.
• High-resistance terminations or fuse holders.
• Poor engine, chassis or amplifier grounding.
• Excessive cable length or overloaded distribution hardware.

Measure voltage directly at the amplifier power terminals under load. Voltage at the front battery alone does not establish what the amplifier receives.

The Evolution Lithium car audio grounding and voltage-drop troubleshooting guide explains how to inspect and test the return path.

Can You Estimate Current Draw From Amplifier Fuse Ratings?

Amplifier fuse ratings can provide useful supporting information, but they are not direct current-consumption measurements.

For example, an amplifier fitted with three 40A fuses has a combined onboard fuse rating of 120A.

This does not mean it continuously draws 120A, nor does it mean current can never briefly exceed that figure.

Fuses are protective devices with time-current characteristics. Their behaviour depends on current magnitude, duration, temperature and fuse construction.

Some high-power amplifiers also require external protection instead of relying on onboard fuses.

For the main supply, the fuse must protect the cable and installation against fault current. Selection depends on conductor material, cross-sectional area, installation conditions, circuit design and the manufacturer’s requirements.

Crutchfield’s car amplifier power-wire fuse sizing and protection guide explains the relationship between cable size and protective fuse selection.

Do not choose a fuse solely by matching the estimated amplifier draw or installing the largest available rating.

Where a rear lithium bank and front starting battery both supply a cable, every battery-fed fault path must be properly protected.

Read the Evolution Lithium guide to safely wiring a rear LTO lithium car audio battery bank for source protection, cable routing and connection requirements.

How Much Alternator Current Is Actually Available for Car Audio?

A 250A alternator does not mean 250A is available exclusively for your amplifiers.

The alternator must also supply the vehicle’s normal electrical systems, including engine management, fuel pumps, cooling fans, lighting and accessories.

For example:

• Actual alternator output under the test condition: 250A.
• Vehicle electrical demand: 50A.
• Approximate remaining current: 200A.

That 200A is an illustrative electrical balance, not guaranteed continuous audio capacity.

Alternator output changes with temperature, engine RPM, pulley ratio and charging voltage. A 250A-rated alternator may deliver considerably less at hot idle.

If the audio system demands more than the available current, the battery bank supplies the difference until the charging system can replenish it.

For a more complete assessment, see the high-output car audio alternator sizing guide for SCiB lithium battery systems.

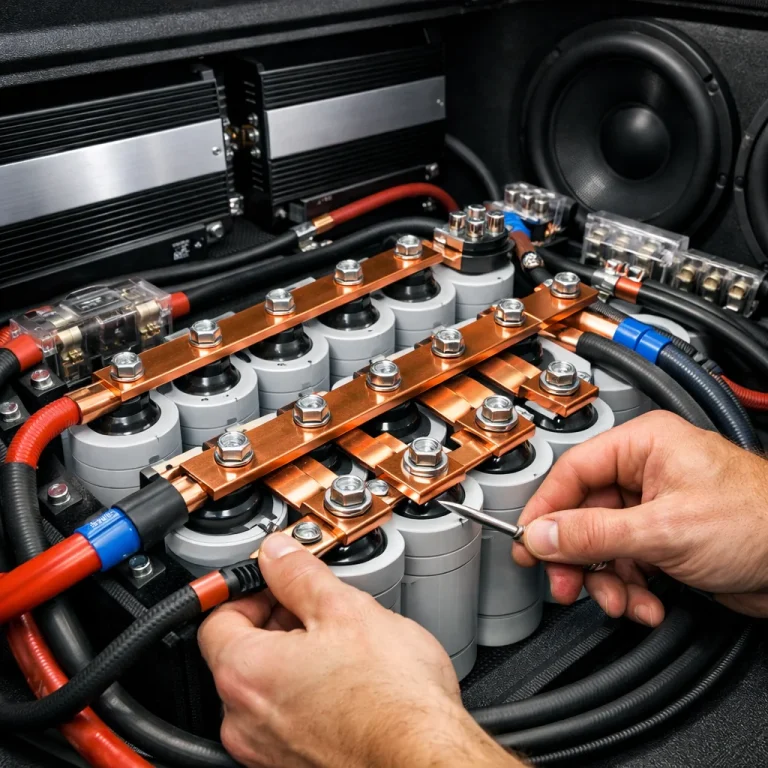

How Toshiba SCiB LTO Batteries Support High Amplifier Current Draw

Evolution Lithium specialises in Toshiba SCiB lithium titanate battery banks designed for demanding car audio electrical systems.

The important difference is not simply amp-hour capacity. It is the bank’s ability to supply high current while maintaining a suitable operating voltage.

Toshiba identifies high input and output power as a key characteristic of its SCiB technology. Its official 2.9Ah SCiB high-power cell specifications also describe high-rate discharge behaviour.

Evolution Lithium uses a practical continuous discharge planning rating of 40C for its 2.9Ah SCiB cells, subject to the complete bank design and operating conditions.

This illustrates why capacity alone is misleading: two banks with the same amp-hour rating can have very different current-delivery capabilities.

Charging Voltage Matters

For a compatible 6S 2.9Ah Toshiba SCiB bank, Evolution Lithium generally targets 15.6–15.9V charging.

The intended high-performance operating window is approximately 15.0–16.2V, subject to cell and system limits.

These figures are specific to the applicable SCiB configuration and should not be applied automatically to every lithium chemistry or SCiB cell model.

Before increasing charging voltage, confirm that every connected amplifier, vehicle electronic system and starting battery can safely accept it.

The SCiB LTO battery voltage and high-current system design guide provides additional detail on selecting the right cell platform and charging arrangement.

An LTO bank can support amplifier demand beyond instantaneous alternator output. It cannot eliminate an ongoing energy deficit when the system consumes more than the alternator replenishes.

How to Measure Actual Amplifier Current Draw

Calculations are useful before installation, but measurements reveal how the finished system behaves.

Use the following procedure:

1. Confirm amplifier specifications. Record each amplifier’s RMS rating, nominal speaker impedance and permitted voltage range.
2. Measure operating voltage. Check voltage at the amplifier’s positive and negative power terminals under representative playback conditions.
3. Use a DC clamp meter. Select an instrument rated for the expected current and clamp around one DC supply conductor.
4. Measure realistic playback. Use music and volume levels representative of normal use, recording both sustained demand and short peaks where the instrument supports them.
5. Check alternator contribution. Measure charging-system output and account for vehicle electrical loads.
6. Monitor battery behaviour. Check whether voltage and state of charge recover between tracks or progressively decline.

A clamp meter that displays only instantaneous values may miss fast transient peaks. Use appropriate logging equipment where precise dynamic measurements are necessary.

Current and voltage readings should be taken under comparable operating conditions. Do not treat readings captured at different times or loads as a reliable voltage-drop measurement.

For high-current systems, these measurements should be carried out by an installer familiar with automotive electrical safety.

Choosing the Right Battery Bank After Calculating Current Draw

Once you understand potential current demand, battery selection becomes more accurate.

The bank must be capable of supporting the portion of demand that the alternator cannot supply, while maintaining suitable voltage for the intended operating time.

Consider:

• Combined amplifier RMS output and real operating impedance.
• Estimated and measured DC current demand.
• Charging voltage and battery chemistry.
• Alternator output at the RPM where the system is normally used.
• Continuous cell discharge capability.
• Usable battery capacity and desired playing time.
• Cable, connection and fuse limitations.

A high-current 30Ah SCiB bank may outperform a larger-capacity bank built from lower-discharge cells in a short, demanding application. However, additional energy capacity may be necessary for longer demonstrations.

For a detailed comparison, read the Evolution Lithium guide to sizing a lithium car audio battery bank for RMS power and runtime.

Frequently Asked Questions

How many amps does a 1,000W car amplifier draw?

At 14.4V and an assumed 80% efficiency, approximately 87A while producing 1,000W of audio output. At 15.8V, the corresponding estimate is approximately 79A. Actual music demand varies.

How many amps does a 3,000W RMS amplifier draw?

Approximately 260A at 14.4V or 237A at 15.8V, assuming 80% efficiency and full rated output. These figures are not continuous music averages.

How much current does a 5,000W Class D amplifier require?

At 15.8V and 80% efficiency, approximately 396A at full 5,000W output. At 14.4V under the same assumptions, approximately 434A.

Does a Class D amplifier draw less current than Class A/B?

Generally, yes, when both produce the same output under comparable conditions and the Class D amplifier operates more efficiently. Actual efficiency must be checked for the specific amplifier.

Do I need to add the current draw of all my amplifiers?

Yes. Calculate the electrical demand of each amplifier using its rated output, operating voltage and appropriate efficiency. Add those estimates to assess combined potential demand, then account separately for vehicle loads and real music use.

Can I calculate current draw from the amplifier’s fuse rating?

Fuse ratings provide supporting information but do not directly indicate continuous current consumption. Use manufacturer specifications, electrical calculations and appropriate measurements.

Will increasing charging voltage reduce current draw?

For the same output power and unchanged efficiency, higher supply voltage reduces the calculated input current. However, the amplifier may behave differently at another voltage, and all connected equipment must remain within safe operating limits.

Can a lithium battery supply more current than the alternator?

Yes. A properly designed lithium bank can supply current when instantaneous demand exceeds alternator output. The alternator still needs to replenish the energy withdrawn from the bank.

Conclusion

Calculating car amplifier current draw starts with three figures: verified RMS output, operating voltage and amplifier efficiency.

Use the equation RMS watts ÷ (voltage × efficiency) to estimate current at a specified output level. For multiple amplifiers, calculate each one separately and combine the results.

Then distinguish theoretical full-output current from real music demand, account for vehicle electrical loads and measure voltage at the amplifier under load.

For high-power SCiB LTO systems, correct battery sizing, compatible charging voltage, sufficient alternator generation and low-resistance wiring must work together.

Evolution Lithium can help assess the right Toshiba SCiB battery-bank configuration for your amplifier RMS power, charging voltage, alternator output and intended listening or demonstration requirements.
