7 Battery Upgrades That Make the Biggest Difference in High-Power Car Audio Systems

A high-power car audio system needs more than a large amplifier and a bigger battery. Reliable output depends on the complete electrical system being able to generate, store and deliver current without excessive voltage drop.

The biggest gains usually come from installing a genuine Toshiba SCiB LTO battery bank, matching the bank to the amplifier load, upgrading the alternator, reducing resistance, positioning the battery close to the amplifiers and protecting the system correctly.

For systems above roughly 3,000 watts RMS, these upgrades can improve voltage stability, reduce clipping, lower stress on the amplifiers and support longer demo sessions. The battery and alternator must be planned together. A strong battery bank can handle short bursts of current, but the alternator must replace the energy used.

The seven upgrades below cover the practical changes that make the largest difference in daily-driven, demo and SPL car audio systems.

1. Install a Genuine Toshiba SCiB LTO Battery Bank

Replacing an AGM battery arrangement with a correctly sized Toshiba SCiB LTO bank is one of the most effective upgrades for a high-power car audio system.

AGM batteries can store a useful amount of energy, but their higher internal resistance limits how efficiently they deliver current at extreme loads. As current demand rises, voltage drop increases, heat builds and amplifier voltage falls.

SCiB LTO cells have much lower internal resistance and can supply high current with less voltage loss. This allows the amplifiers to remain closer to their intended operating voltage during heavy bass notes.

The main benefits are:

• More stable voltage under load.
• Improved current delivery during bass peaks.
• Reduced amplifier clipping caused by low voltage.
• Faster recovery between high-current demands.
• Lower weight than a comparable bank of AGM batteries.
• Long service life when charged and operated correctly.

The bank should be mounted in the boot or rear cabin close to the amplifier rack. Lithium battery banks should not be installed under the bonnet, where sustained heat and harsh environmental conditions can reduce reliability.

Use Genuine Cells and Proper Busbars

Cell quality matters. Unknown or poorly matched cells may have inconsistent internal resistance, reduced capacity or an unclear service history.

A properly assembled SCiB bank should use matched cells, solid copper busbars, secure hardware and correctly sized terminals. Each joint must remain mechanically stable under vibration and high current.

Short, wide copper connections reduce resistance between cells. Long flexible links, thin straps and unnecessary joins add resistance that becomes measurable at several hundred amps.

2. Match the Battery Bank to the Amplifier Load

Battery sizing should be based on the amplifier power, alternator output, charging voltage, listening style and expected demo length.

Amp-hour capacity alone does not determine whether a battery is suitable. Cell discharge capability and internal resistance are equally important.

A small SCiB bank made from high-discharge cells may support a large amplifier for short music peaks, but it may not contain enough stored energy for long demo sessions. A larger bank can extend playing time, but it will not solve an undersized alternator.

Evolution Lithium builds banks from several different cell formats.

For many 3,000 to 10,000 watt RMS daily systems, a 30 Ah bank made from 3 Ah SCiB cells is a strong starting point when supported by adequate alternator output and charging voltage.

A 45 Ah bank suits many systems in the 15,000 to 20,000 watt RMS range, while 60 Ah and 90 Ah banks are more appropriate for larger builds, longer demonstrations or vehicles with substantial amplifier power.

These are planning ranges, not guarantees. Amplifier efficiency, final impedance, music type, charging capacity and voltage all affect the current the bank must supply.

Estimate Current Before Selecting a Bank

A practical estimate for a Class D amplifier is:

A 5,000 watt RMS amplifier operating at 15.8 volts and 80 percent efficiency would require approximately:

That figure represents the theoretical electrical demand at full continuous output. Music is dynamic, so average current is usually lower. Test tones and competition burps can remain much closer to peak demand.

3. Upgrade the Alternator and Charging Voltage

The alternator determines how much electrical power the vehicle can sustain over time. The battery supplies short-term current and absorbs the difference when amplifier demand exceeds alternator output.

Adding more battery capacity without improving the charging system can make the system play longer before voltage falls, but it does not increase the amount of continuous power the alternator can supply.

For this reason, the alternator and battery bank should be planned as one system.

A high-output alternator helps:

• Maintain charging voltage during extended playback.
• Replace energy removed from the battery bank.
• Reduce deep discharge during long demonstrations.
• Improve recovery after bass-heavy sessions.
• Reduce the likelihood of the battery becoming the sole power source.

The alternator should be selected around realistic music demand rather than amplifier marketing figures. A nominal 20,000 watt amplifier does not continuously draw its maximum rated current during normal music playback, but a weak factory alternator will still struggle to support a large system.

Alternator output should also be assessed at idle. Some high-output units produce impressive peak figures at engine speed but much less current at idle, which matters during stationary demos.

Set the Correct Charge Voltage

A 6S SCiB bank should not be charged using an uncontrolled voltage source.

Evolution Lithium generally targets approximately 15.6 to 15.9 volts for high-performance car audio use. This provides a high state of charge without relying on the 16.8 volt absolute maximum.

The charging voltage must also remain within the safe operating range of the amplifiers, head unit, signal processors and other vehicle electronics.

Vehicles with smart charging systems may reduce alternator voltage under conditions where a conventional alternator would maintain output. These vehicles may require a controlled charging solution or alternator modification designed for the specific vehicle.

4. Reduce Resistance Throughout the Electrical System

A premium battery bank cannot compensate for poor wiring.

Every cable, lug, fuse holder, distribution block, busbar and ground point adds resistance. At low current, the losses may be difficult to detect. At 300, 500 or 1,000 amps, a weak connection can cause significant voltage drop and heat.

Voltage drop can be calculated using Ohm’s law:

A resistance of only 0.001 ohm creates a 0.5 volt drop at 500 amps. That demonstrates why milliohms matter in high-power car audio systems.

Use:

• Large oxygen-free copper cable.
• Properly sized solid copper busbars.
• High-quality copper lugs.
• Hydraulic or correctly specified crimping tools.
• Short current paths.
• Quality fuse holders and distribution blocks.
• Clean, low-resistance grounding points.

Avoid unnecessary joins. Every additional connection creates another potential source of resistance, heat and mechanical failure.

Cable Size Must Match Current and Length

Cable sizing should account for current, conductor material and total circuit length. A cable that is acceptable for a short amplifier connection may be inadequate for a long front-to-rear run.

Large builds commonly use 1/0 AWG, 2/0 AWG or multiple parallel cable runs. The correct choice depends on actual conductor cross-section and the manufacturer’s current rating.

Cable labels are not always reliable. Some inexpensive cable uses thick insulation around a relatively small conductor. Confirm the actual copper cross-section before trusting the stated gauge.

Crimping and Torque Matter

A poor crimp can create more resistance than the cable itself. Lugs should be compressed using the correct die and then protected with heat-shrink. Heavy cables should be supported so vibration is not transferred directly into the terminal.

Busbar and battery connections should be tightened to the correct torque and checked periodically. Excessive torque can damage threads or cell terminals, while insufficient torque allows movement and heat.

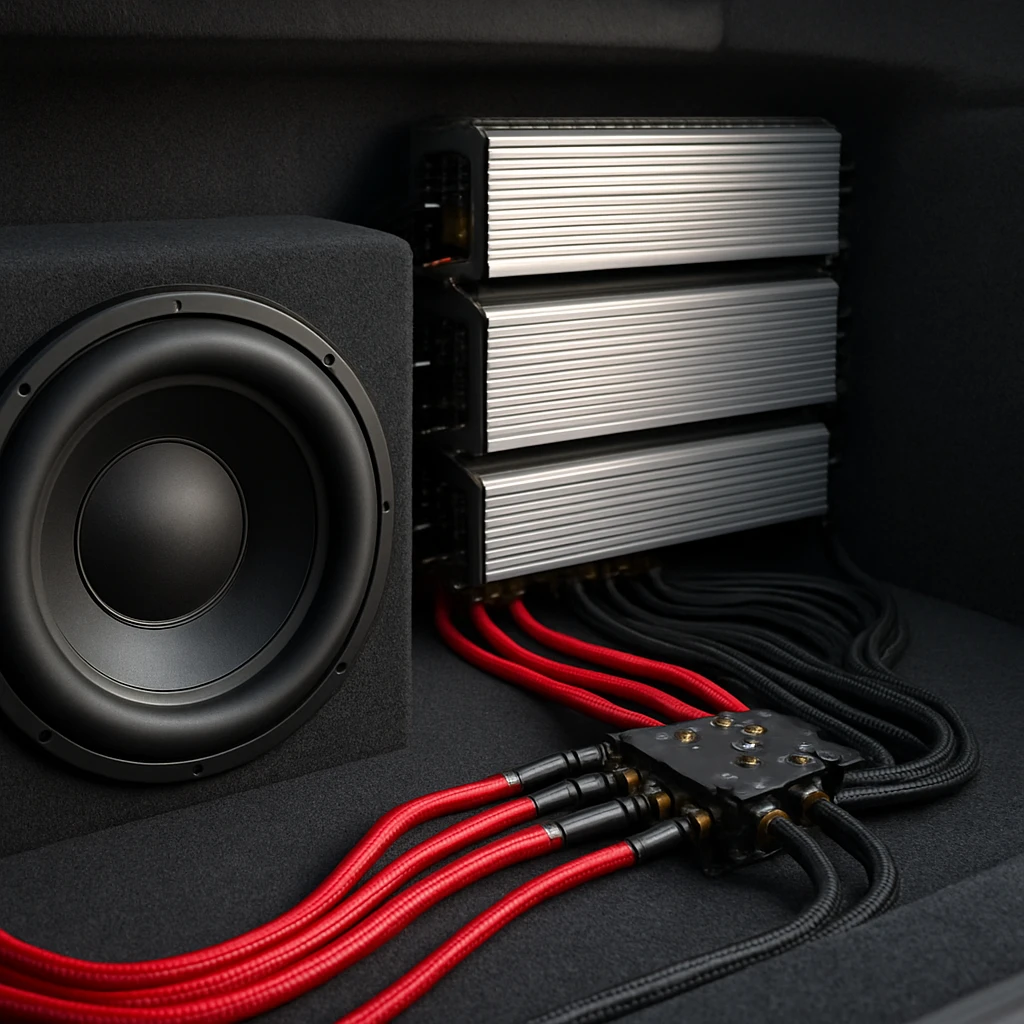

5. Position the Auxiliary Battery Close to the Amplifiers

Battery placement directly affects voltage at the amplifier.

The highest-current section of the electrical system is normally the connection between the rear battery bank and the amplifiers. Keeping this path short reduces resistance and limits voltage drop during bass peaks.

A practical layout is:

• Starter battery and alternator at the front.
• SCiB LTO bank in the boot or rear cabin.
• Short power and ground connections to the amplifier rack.
• Large front-to-rear charging cables.
• Correct fusing at each energy source.

The bank should be securely mounted in an enclosure or frame capable of resisting vehicle movement, braking forces and vibration.

Treat the Negative Path as Seriously as the Positive

The negative side carries the same current as the positive side.

A strong positive cable paired with a poor chassis ground will still create voltage drop. High-power builds often benefit from a dedicated negative return between the front electrical system and the rear battery bank, particularly where the vehicle chassis provides an inconsistent current path.

At minimum, upgrade:

• Alternator positive to the front battery or distribution point.
• Front battery negative to chassis.
• Engine block to chassis.
• Rear battery negative to chassis or dedicated front return.
• Amplifier grounds to the rear bank or common distribution point.

Grounding points should be cleaned to bare metal, protected from corrosion and secured with suitable hardware.

6. Choose a Battery Chemistry That Suits High Current

AGM, LiFePO4 and LTO batteries can all be used in car audio, but they behave differently under heavy current.

AGM remains useful where cost is the main concern and current demand is moderate. LiFePO4 can work well in daily systems where low weight and stored capacity are priorities.

SCiB LTO is better suited to builds where voltage stability, current delivery and repeated high-load cycling matter more than the lowest purchase price.

The correct choice depends on the system. A well-designed LiFePO4 bank may outperform a poorly assembled LTO bank. Cell quality, busbars, wiring, charging and installation remain critical.

7. Add Proper Fusing, Balancing and Monitoring

High-discharge battery banks store enough energy to damage wiring, equipment or the vehicle if a short circuit occurs.

Fuse Every Cable Leaving a Power Source

A fuse protects the cable, not the amplifier.

Any positive cable leaving a battery or battery bank should be fused close to the source. When a cable connects batteries at opposite ends of the vehicle, both ends need protection because either battery can feed a short circuit.

Fuse rating should be selected according to cable capacity and expected continuous current. Installing a larger fuse than the cable can safely carry defeats its purpose.

ANL and Class T fuses are commonly used in high-current systems. The correct option depends on current, fault capability and the design of the installation.

Use an Active Balancer

Cells connected in series can gradually develop small voltage differences. An active balancer transfers energy between cells and helps keep the bank aligned.

Cell voltages should be checked before the first installation and during routine servicing. A persistent imbalance may indicate a weak cell, poor connection or uneven current path.

Monitor Voltage and Current

A dashboard voltmeter provides a quick view of charging voltage, but it does not show how much current is entering or leaving the bank.

A shunt-based monitor can measure:

• Charge current.
• Discharge current.
• Amp-hours removed.
• Amp-hours returned.
• Estimated state of charge.

Monitoring helps identify whether the alternator is keeping up and whether the bank is being discharged deeper than expected.

A steady decline in voltage during a demo usually means the system is using more average current than the alternator can replace.

Common Battery Upgrade Mistakes

Adding Capacity Without Increasing Charge Current

More battery capacity extends playing time, but it does not create continuous electrical power. If the alternator remains undersized, the larger bank will still discharge.

Choosing a Bank From Amp-Hours Alone

Amp-hours measure stored capacity. They do not show internal resistance or current capability. Two batteries with the same capacity can behave very differently under a 500 amp load.

Mounting Lithium Under the Bonnet

High under-bonnet temperatures are unsuitable for most custom lithium car audio banks. Install the bank in the boot or rear cabin where it can be secured and protected.

Using Cheap Cable and Fuse Holders

An electrical system is only as reliable as its weakest connection. Poor cable, thin fuse elements, loose hardware and undersized distribution blocks can waste the performance gained from an expensive battery bank.

Ignoring Cell and Connection Checks

High-current hardware should be inspected periodically. Check terminal torque, busbar condition, cable support, fuse holders and cell balance before problems develop.

How to Plan the Right Upgrade

Use this order when planning the electrical system:

1. Confirm total amplifier RMS power.
2. Estimate realistic current draw at operating voltage.
3. Decide whether the vehicle is for daily listening, demos or SPL competition.
4. Select a battery chemistry suited to the current demand.
5. Choose a bank with enough discharge capability and usable capacity.
6. Match the alternator to the expected average current.
7. Design the cable, busbars, grounds and protection around the highest expected current.
8. Install monitoring so the system can be tested rather than guessed at.

This order prevents expensive mismatches. Buying the largest battery first and trying to design the rest of the electrical system around it often creates unnecessary cost.

Why Evolution Lithium Fits High-Power Car Audio

Evolution Lithium specialises in custom battery banks for high-current car audio systems in New Zealand and Australia.

The range includes banks built from genuine Toshiba SCiB cells and Plannano LTO cells, with options for daily systems, long demo sessions and large SPL builds.

The main value is not simply supplying cells. Correct bank selection depends on amplifier power, alternator output, charging voltage, installation space and how the system will be used.

A customer running a 5,000 watt daily system does not need the same battery as a vehicle built for repeated 20,000 watt demos. Correct sizing keeps cost, weight and charging demand under control.

Replace the placeholders below with verified internal URLs from the Evolution Lithium sitemap:

• SCiB LTO battery bank for car audio
• car audio battery for 5000 watt amp
• how to size a lithium battery for car audio
• LTO vs LiFePO4 for car audio
• high-output alternator for car audio
• best battery for high-power car audio in New Zealand

Frequently Asked Questions

What battery should I use for a 5,000 watt RMS car audio system?

A 30 Ah Toshiba SCiB bank is a strong starting point for many 5,000 watt RMS daily systems when paired with adequate alternator output, correct charging voltage and low-resistance wiring. Final sizing depends on demo length, amplifier efficiency and future upgrades.

Do I need a high-output alternator with an LTO bank?

A high-output alternator is strongly recommended for larger systems. The battery handles current peaks, while the alternator must replace the energy used. Without enough charging current, any battery bank will eventually discharge.

Can I keep the original starter battery?

Yes, but compatibility must be assessed. The front battery, rear lithium bank and alternator will be electrically connected unless isolation is used. Their normal voltage ranges must suit the same charging system.

Where should an LTO battery bank be mounted?

Mount it in the boot or rear cabin, close to the amplifiers. Do not install a custom lithium bank under the bonnet. The bank must be securely restrained and protected from tools, cargo and accidental short circuits.

Is LTO better than AGM for car audio?

For high-current systems, LTO generally provides lower internal resistance, less voltage drop, faster charging and lower weight. AGM remains useful for lower-power builds and starter duties where purchase price is the main concern.

Does a larger battery bank make an amplifier produce more power?

A battery does not increase an amplifier’s rated output by itself. It can help the amplifier maintain output by preventing voltage from falling under load. The result depends on the amplifier, charging system, impedance and wiring.

What is the most important battery installation mistake to avoid?

Do not treat the battery as a standalone upgrade. The bank, alternator, cable, grounds, fusing and charging voltage must be designed together. One weak part can limit the entire system.

Conclusion

The best battery upgrade for a high-power car audio system is not simply the largest bank that fits.

Start with a battery chemistry suited to high current, then match the bank capacity to the amplifier load and expected playing time. Support it with enough alternator output, correct charging voltage, short copper connections, strong grounds and properly rated protection.

For demanding daily, demo and SPL systems, a genuine Toshiba SCiB LTO bank offers a strong combination of current delivery, voltage stability, rapid charging and long service life.

Plan the electrical system as one complete circuit. That approach produces better performance, fewer faults and a system that can hold voltage when the amplifiers are working hardest.
