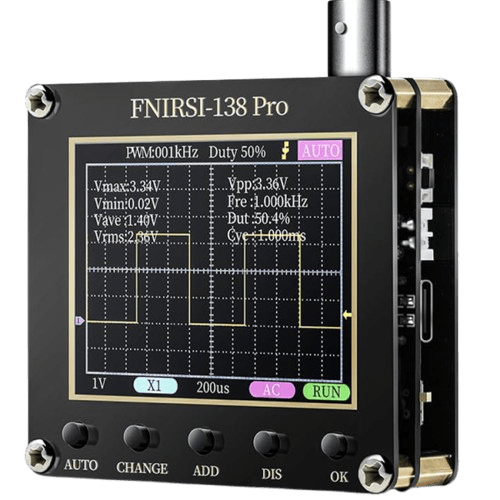

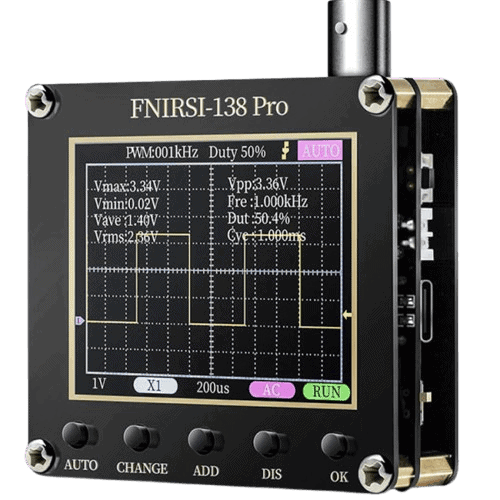

A compact FNISRI Handheld Oscilloscope shows a waveform with voltage and frequency measurements, featuring buttons like AUTO, CHANGE, ADD, DIS, OK, and settings for X1, 1V, and AC on its interface.

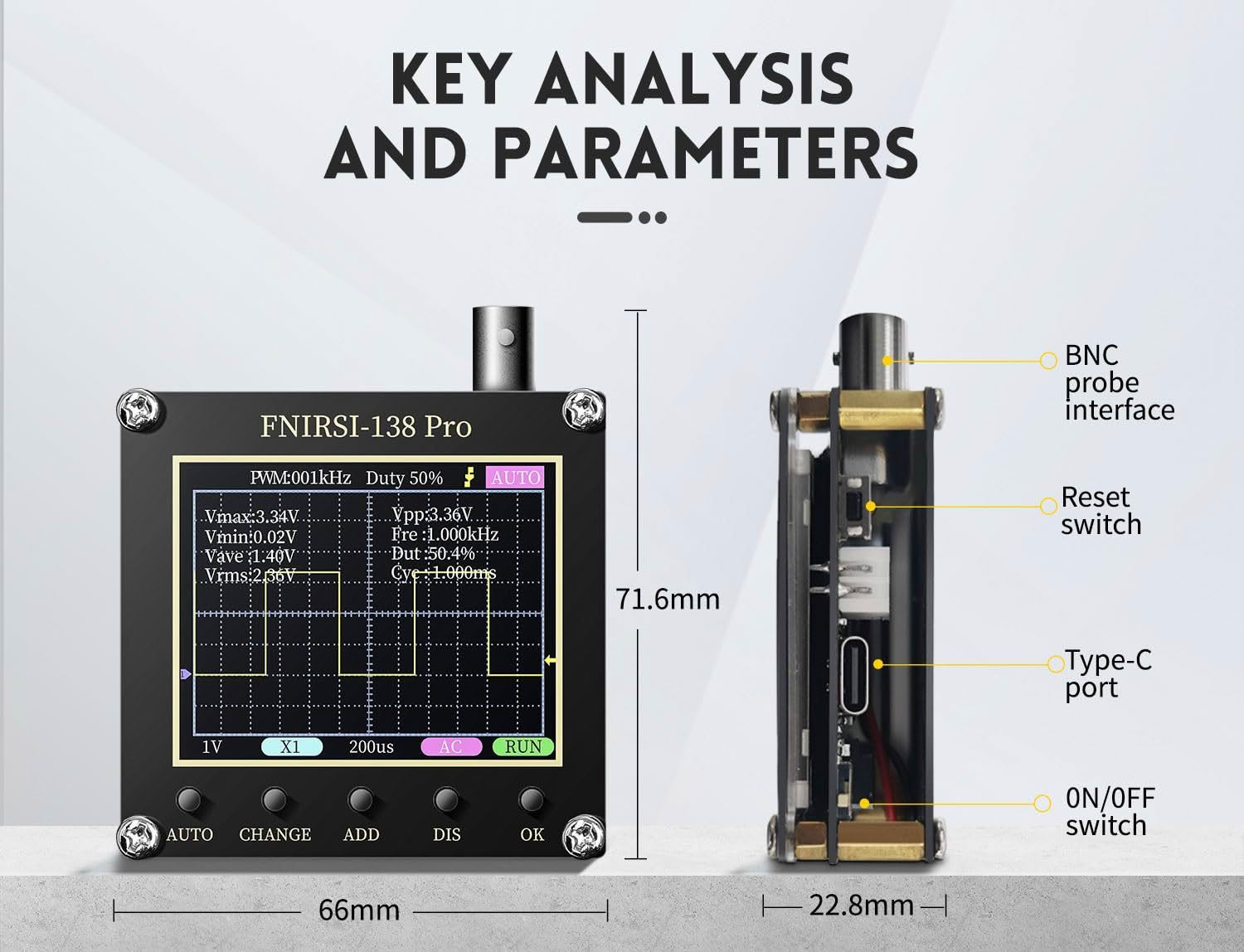

Image of the FNISRI Handheld Oscilloscope showing front and side views. Features include a BNC probe interface, reset switch, Type-C port, and ON/OFF switch. Dimensions are 71.6mm (H) x 66mm (W) x 22.8mm (D).

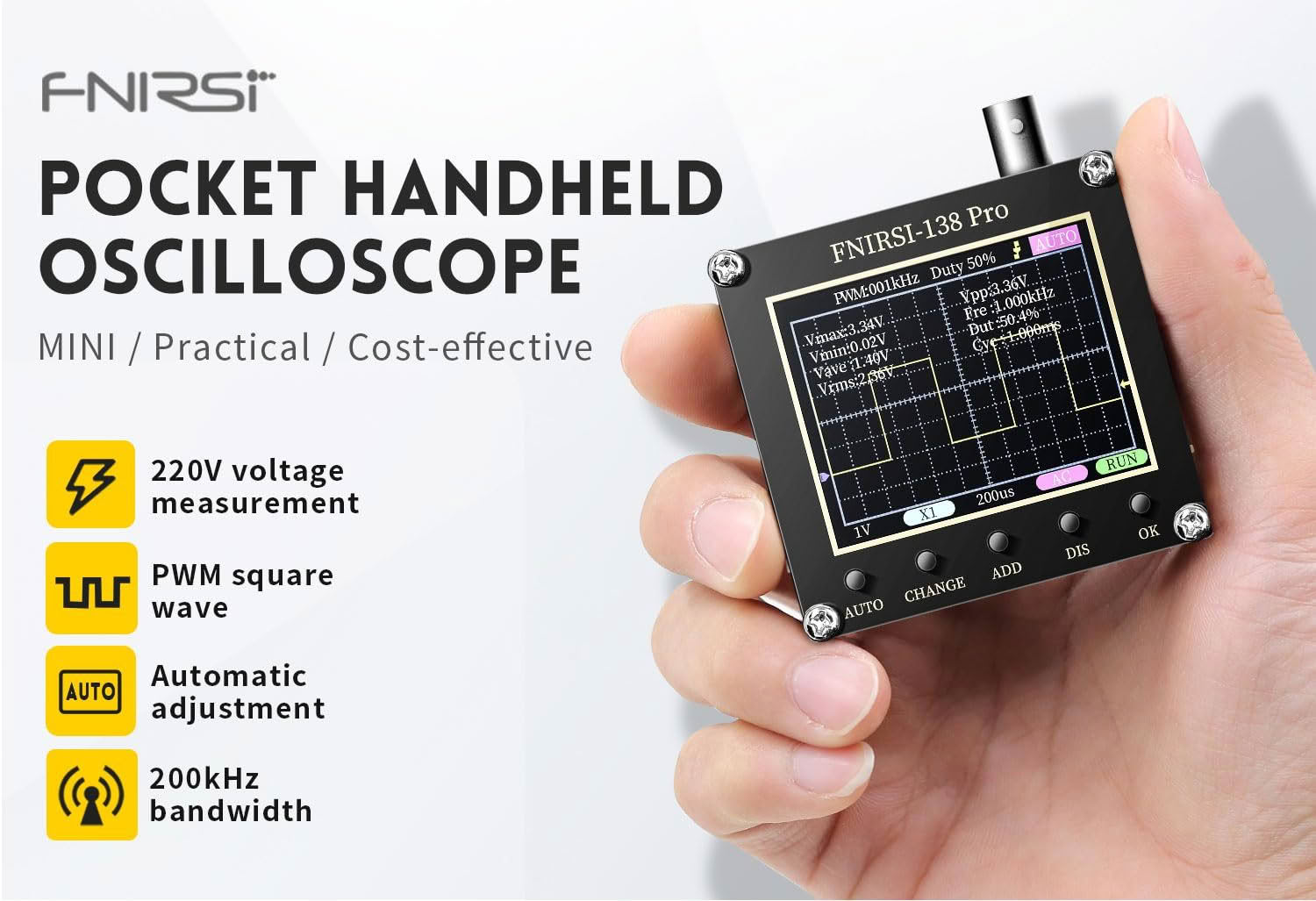

Holding an FNISRI Handheld Oscilloscope showing a waveform, the features include 220V voltage measurement, PWM square wave, Automatic adjustment, and 200kHz bandwidth. Its described as Mini, Practical, Cost-effective.

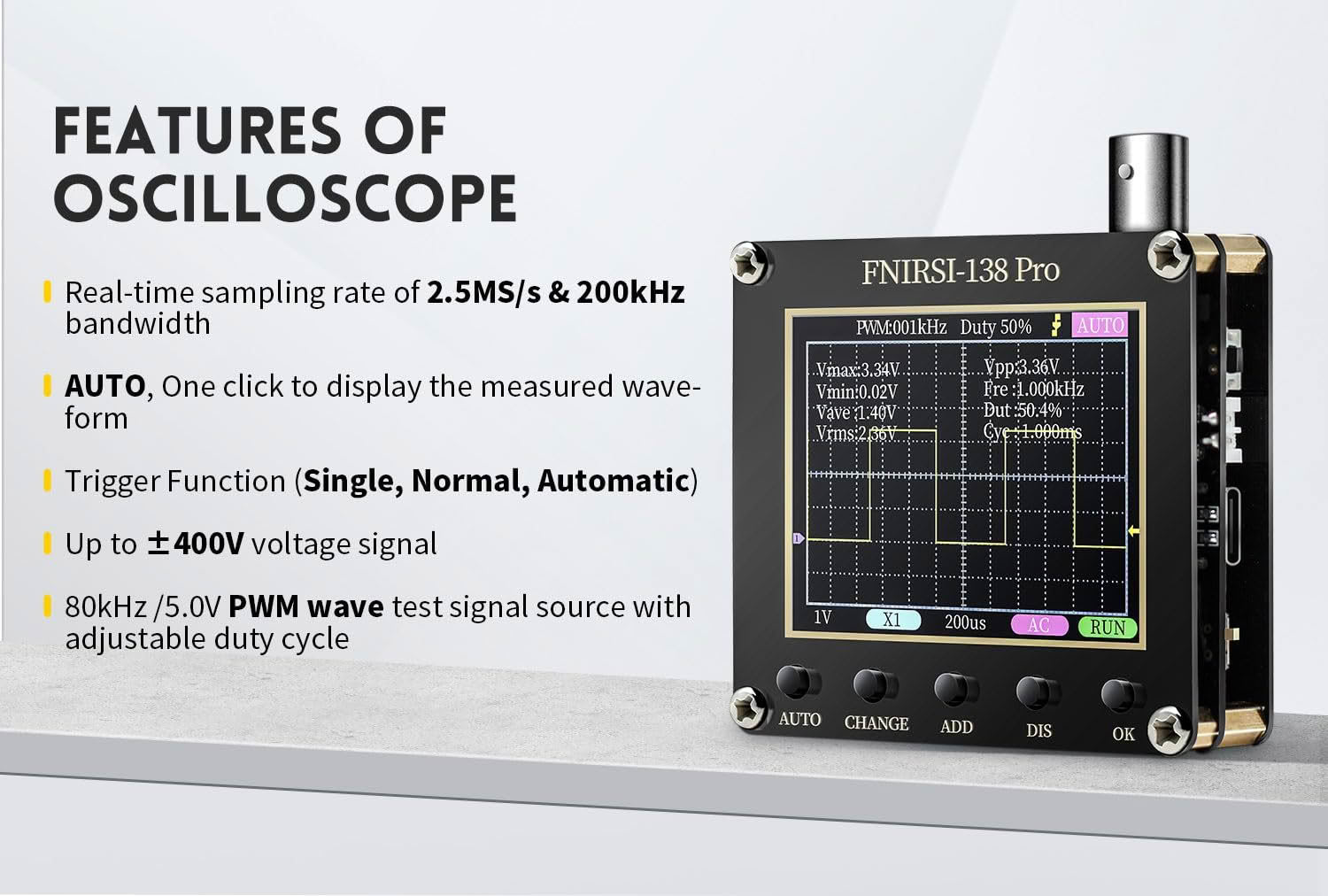

The FNISRI Handheld Oscilloscope offers a 2.5MS/s real-time sampling rate, 200kHz bandwidth, auto waveform display, multiple trigger options, supports up to ±400V voltage signals, and includes an 80kHz/5.0V PWM wave test signal source.

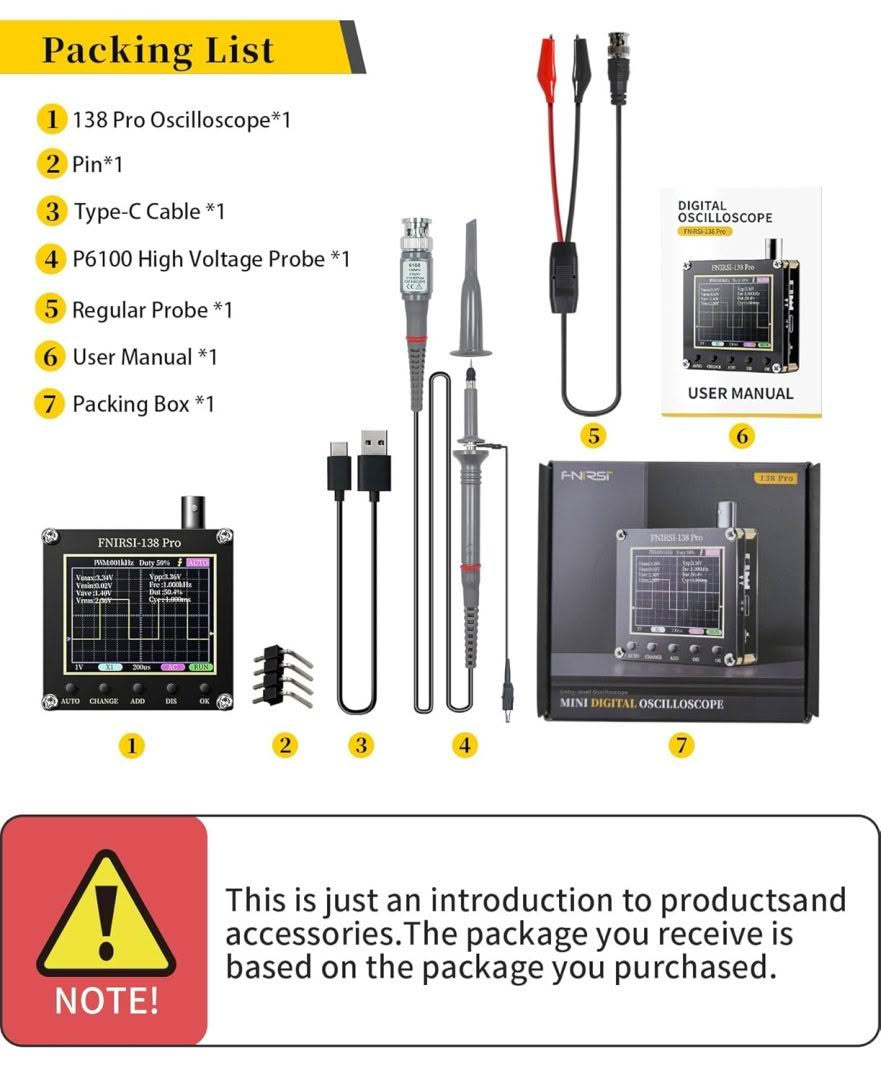

Image of a packing list for a FNISRI Handheld Oscilloscope set. Includes the oscilloscope, probes, pin headers, Type-C cable, user manual, and packaging box. A caution note mentions variations in packages based on purchase.

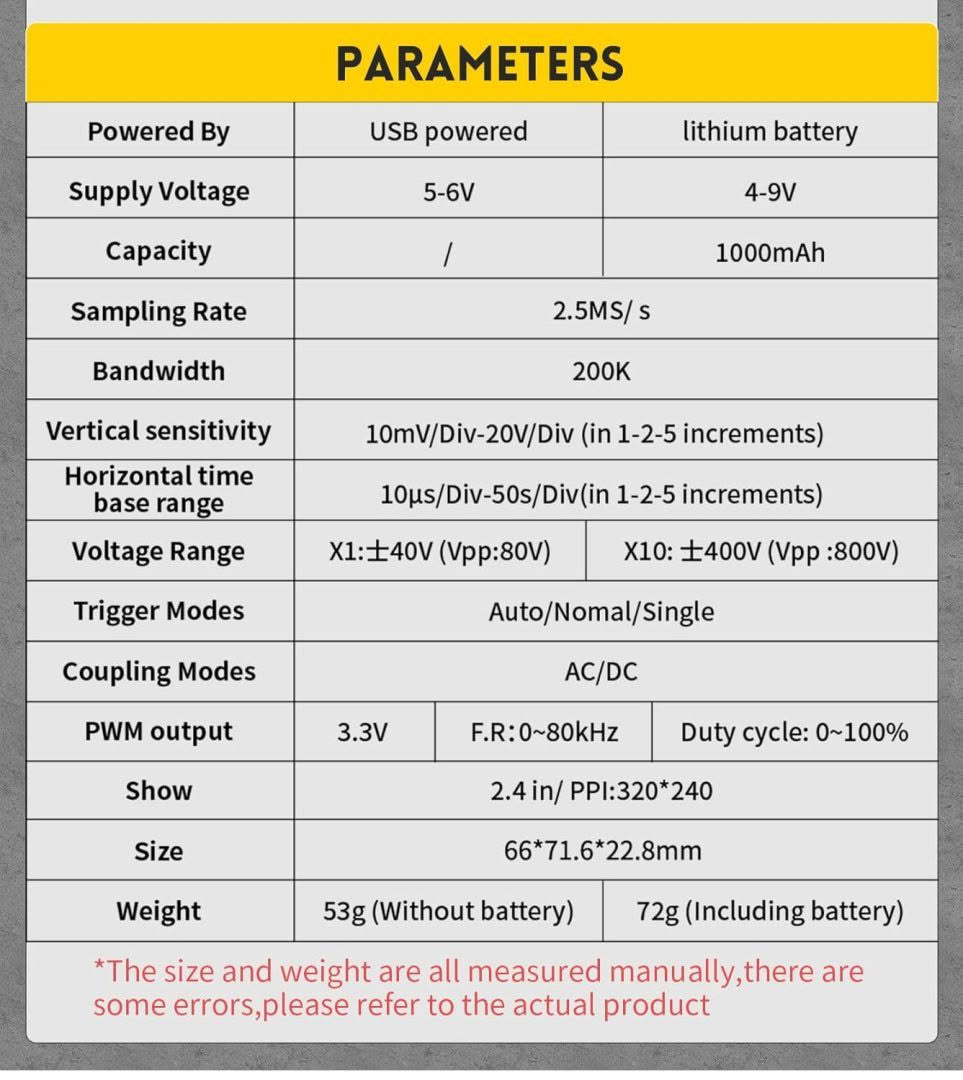

The table details the FNISRI Handheld Oscilloscopes specs: power type, supply voltage, current, sampling rate, vertical sensitivity, time base, trigger modes, coupling modes, PWM output, display size, weight; note potential manual measurement errors.

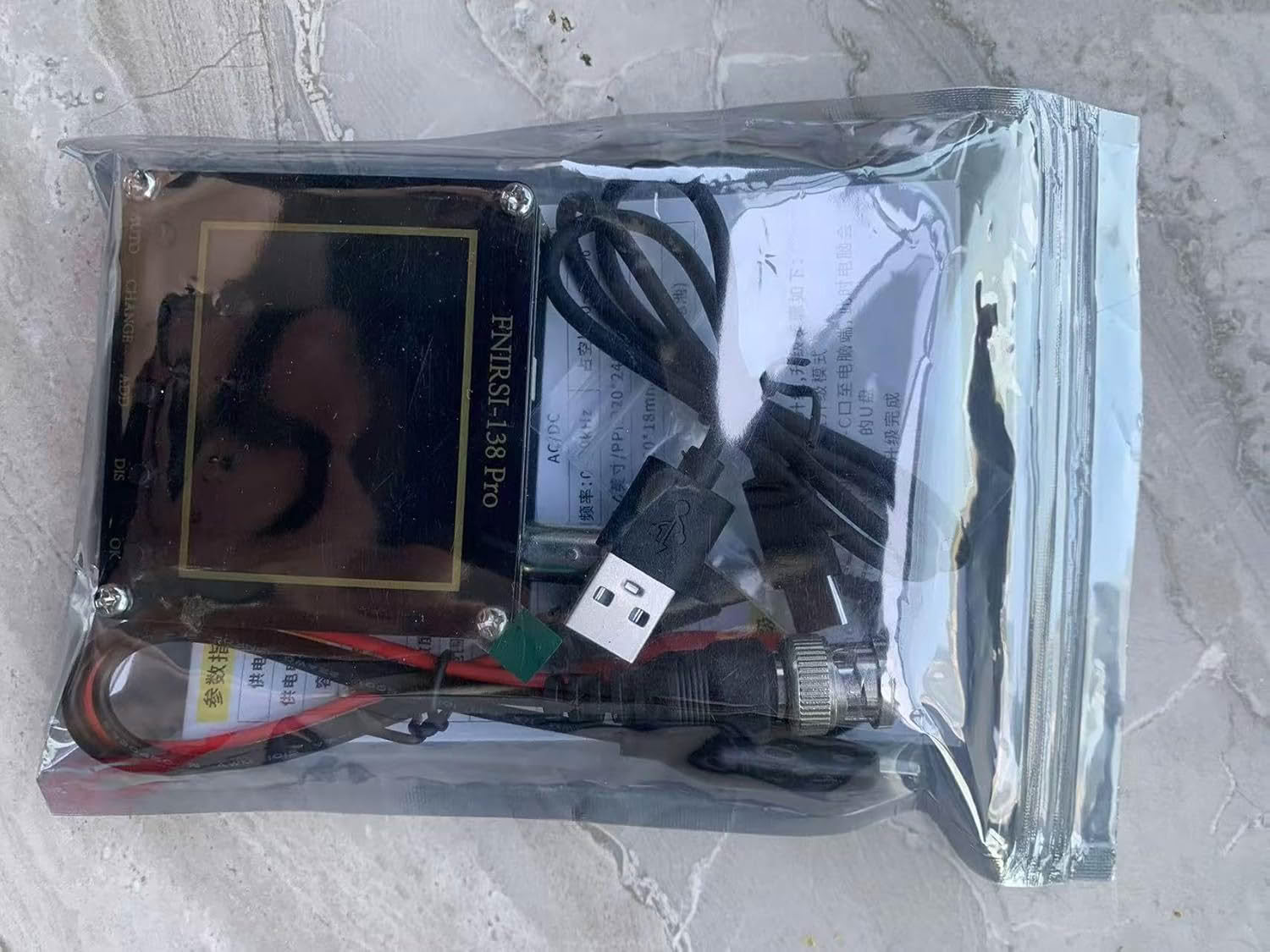

A sealed plastic bag with electronics, including a small black device labeled FNISRI Handheld Oscilloscope, a USB cable, and other wires lies on a textured stone surface.

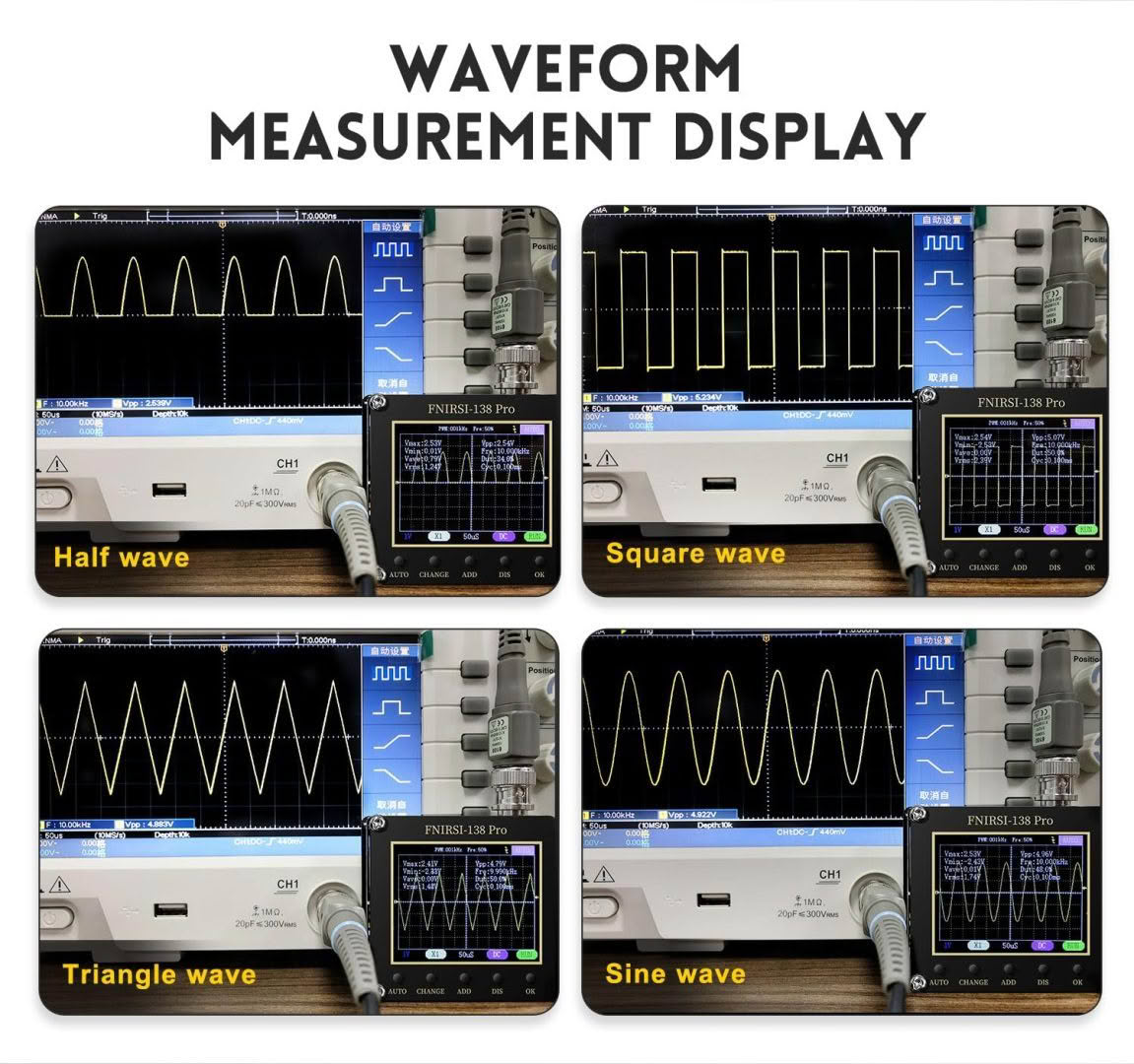

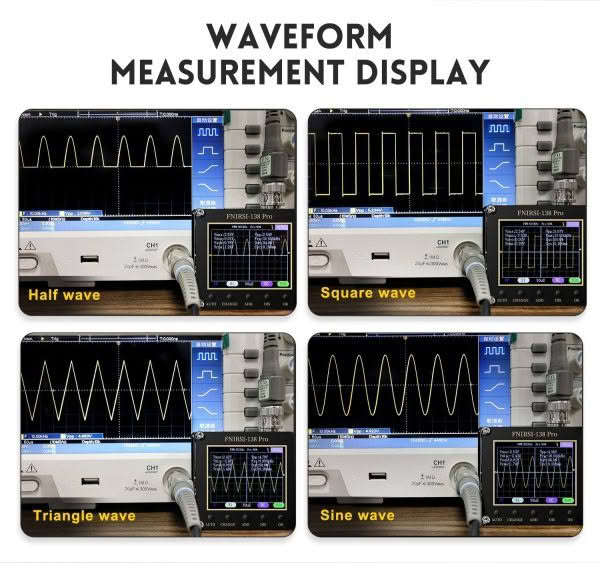

The FNISRI Handheld Oscilloscope displays Half wave, Square wave, Triangle wave, and Sine wave types on screens, each grid showcasing their unique shapes.

FNISRI Handheld Oscilloscope

$65.00

This compact FNISRI Handheld Oscilloscope provides accurate waveform analysis for car audio systems. With easy portability and a user-friendly interface, it’s an essential tool for diagnosing and fine-tuning your audio setup, ensuring maximum performance and efficiency.

Speedy Delivery

NZ Owned

12 Months Warranty

Payment Security

Category: Accessories

Battery capacity	1250mAh
Sampling Rate	2.5MS/s
Bandwidth	200KHZ
Voltage range	X1:+40V(Vpp:80V) X10:+(Vpp:800V)

Weight	0.5 kg
